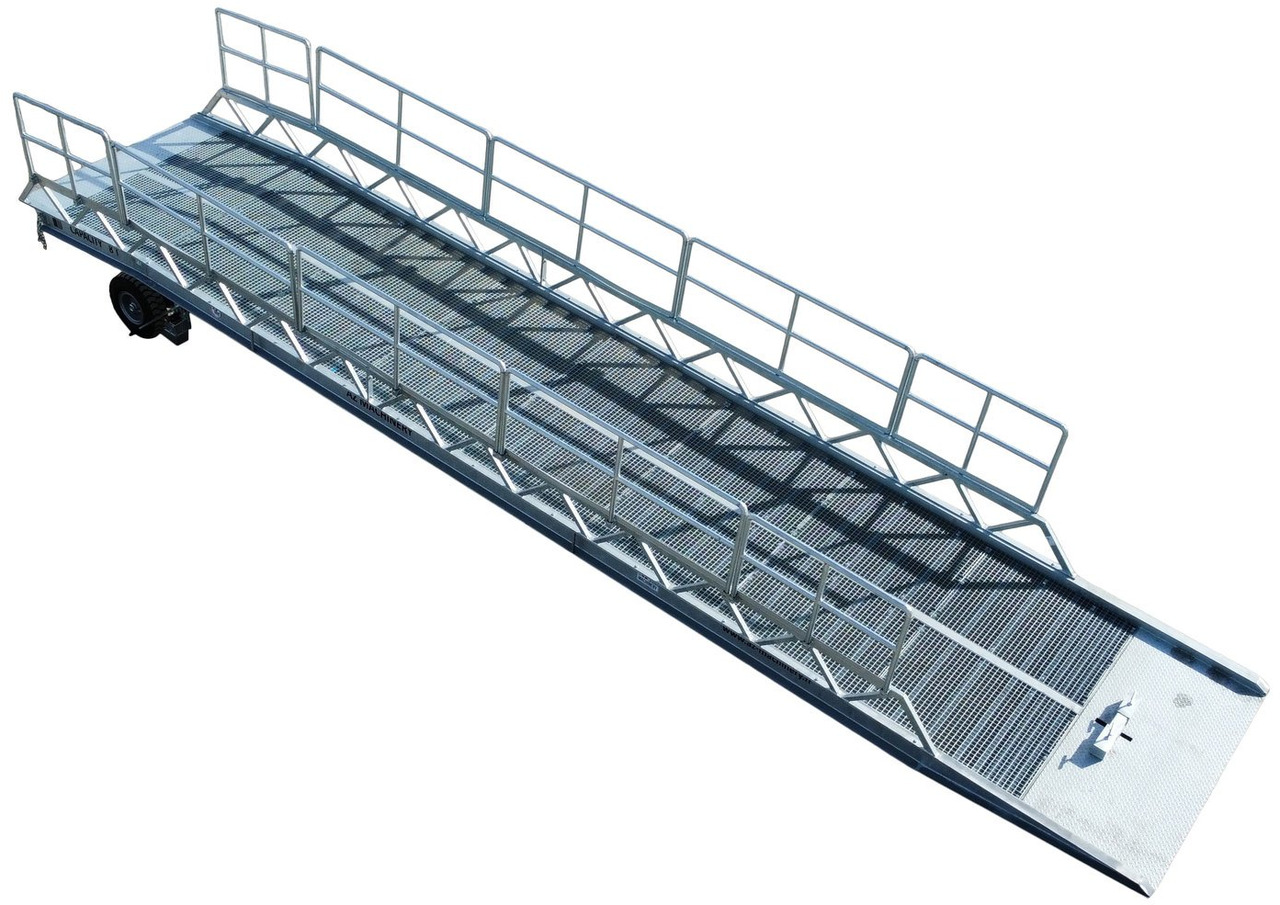

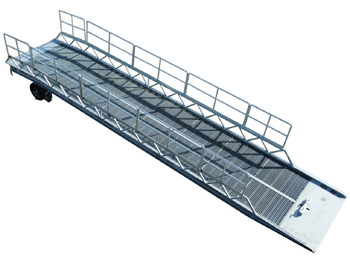

Loading ramp AZ RAMP-EASY XL-12 FULL GALVA. WIDE Mobil Galvanizate Loading Ramp With Level Off, 12 t Capacity

Mobile Loading Ramp for Mixed Terrain Use

Brand: AZ RAMP - Type: EASY-XL 12 FULL GALVA

Loading capacity: 12,000 kg

Overall length: 39 ft 2 in (11,850 mm)

Length of inclined plane: 32 ft 10 in (10,000 mm) / Length of horizontal plane: 6 ft 1 in (1,850 mm)

Overall width outside: 7 ft 8 in (2,256 mm) / Inside width (usable): 6 ft 10 in (2,100 mm)

Truck penetration: 9.8 in (250 mm)

Ramp leveling by manual hydraulic pump:*** Minimum height: 2 ft 11 in (900 mm)

• Maximum height: 5 ft 1 in (1,550 mm)

Fully hot-dip galvanized structure, 1.57 in (40 mm) thick non-slip grating tread surface (the thickest on the market offering unmatched robustness).

2 lashing chains, retractable quick central tow hook for movement via forklift forks, ramp mounted on pneumatic tires for movement on the most uneven terrain, 13.78 in (350 mm) high side safety rails

Slopes: Min: 9.00% - Max: 15.5%

Allowing its use with the largest number of existing machines (pallet trucks, stackers, mini-cranes, etc.)

Available Options:*** Side safety railings, height 4 ft 7 in (1,200 mm): €1,000 HT

• Electric lifting (leveling): €2,000 HT
• Cross fork sleeves to secure the unloading of your ramp: €750 HT
• Forklift towing handle: €750 HT
• Tarpaulin tunnel: €4,250 HT

Applications: Specially designed for mixed use, its use on uneven surfaces such as dirt, gravel, and damaged soil will be very effective. Loading/unloading of flatbed or tautliner trucks, wagons, and sea containers.

Advantages:*** Sturdy and durable: designed for intensive use

• Easy to use: hydraulic system for effortless raising and lowering
• Safe: numerous safety features for confident use
• Versatile: adapts to different types of vehicles and loading docks
• Compliant with standards: meets current safety requirements

Product Plus:*** 10,000 kg load capacity

• New equipment, available in stock in France,
• Delivered by us within 48/72 hours to all destinations!
• The AZ RAMP - EASY XL range is made of heavy steel, hot-dip galvanized.
• Its full access platform will allow you easy access with all types of handling equipment, including electric pallet trucks, pallet stackers, 3-wheel or 4-wheel electric forklifts.
• Versatility and adaptability
• Optimal safety
• Ease of use
• Robustness and durability
• CE compliance
