Ground support equipment Galtech 2 Section Directional Control Valve Q45 60 L/min 16 GPM Electric Solenoi for agricultural machines, tractors, sprayers, turners, cyclops, HDS loaders, construction machines, loaders, excavators, sweepers, industrial machinery andhydraulically operated equipment

Published: 3mo 12d

Published: 3mo 12d

717EUR

≈ 9 361 GHS
≈ 838 USD

Leasing

Available on request

Location

Poland, Paszowice 35E6

+4866339... Show

+48663399034

More information

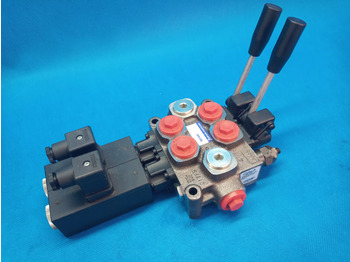

Galtech 2 Section Directional Control Valve Q45 60 l/min 16 GPM Electric solenoid 12V + levers

Valve controled electrically and by additional lever.

The levers on the spring that helps back to the vertical position

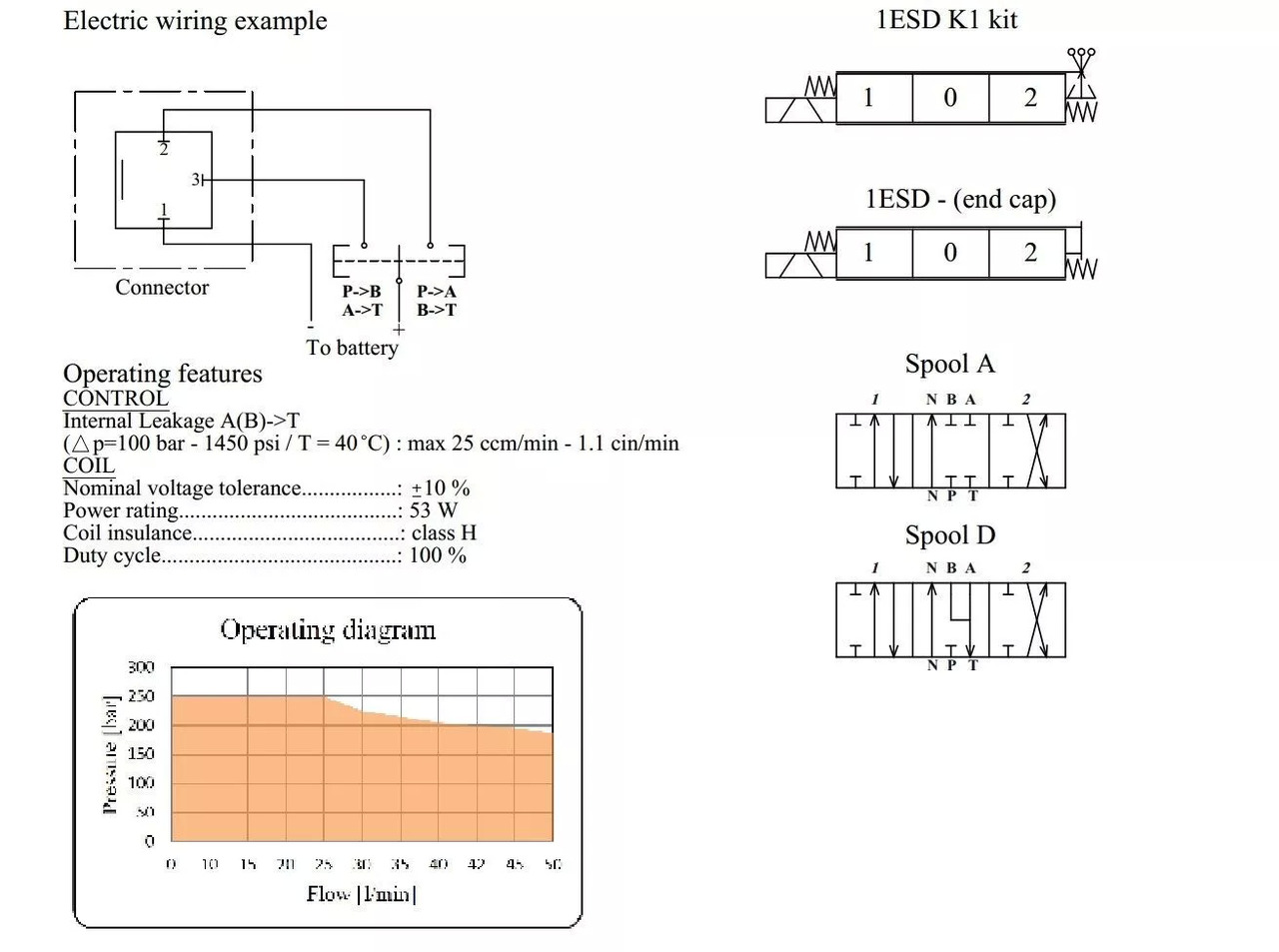

Perfect for machines and vehicles which require the ability to control distributor of two places: electrically from the cabin and levers standing directly on the valve, as for example. HDS-edged and cranes.

Lever three positions:

Position the first neutral (lever positioned vertically piston cylinder stands - oil goes to overflow

Position the second working (lever set to slant forward) piston cylinder extends.

Position the third working (lever set to slant backward) piston cylinder retracts.

Threads inside in valve:

Power 1/2 ''

Return: 1/2 ''

Connecting sections: 1/2 ''

An overflow valve:

Factory set at 175Bar = 2538psi

The possibility of self-regulation, a full rotation change of 30Bar = 435psi.

Allowable pressure:

Flow: 250 bar = 3625psi

Return: 50Bar = 725psi

On the sections: 300bar = 4351psi

Permitted the ambient temperature:

-40 ° C to + 60 ° C

Permissible oil temperature:

-15 ° C to + 80 ° C

Oil type:

Hydraulic oil based on mineral oil

HIGH QUALITY Made in Europe !

It is widely used in hydraulic systems in construction, agriculture and industry.

The distributor is adapted to various types of machines such as: agricultural machines, tractors,

sprayers, turners, cyclops, HDS loaders, construction machines, loaders, excavators, sweepers,

industrial machinery and other hydraulically operated equipment.

Ideally suited for machines and vehicles where the ability to control the distributor is required

from two places, e.g. electrically from the cab and with levers while standing directly at the distributor,

This is the case, for example, with HDS and cranes.

Cylinder Spool type, for request we can build valve with ''D spool'' motor type.

The Powerbeyond bushing is a device that allows the activation of an additional flow-limited valve downstream of another valve, by changing the function of the 'T' port to a pressure port. This solution provides power to the downstream valve from the port normally intended for the 'tank', allowing the transfer of high pressure. To use this functionality, it is also necessary to remove the cap from the top of the valve block, allowing it to be used as a reservoir connection.
