Cement silo Constmach Silo à Ciment d'une Capacité de 200 Tonnes

You can call us 24/7 for a 200-ton cement silo for sale.

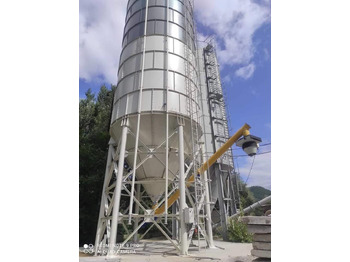

Designed for the needs of your business, our CS-200 model offers an impressive storage solution with a capacity of 200 tons. with a height of 18360 mm and a diameter of 4100 mm, it provides a large storage area. This silo, which stands out with its durable structure, is long-lasting and safe thanks to its weight of 14800 kg and its body made of ST-37 steel material.

The silo legs are made of 200 x 2 mm rectangular iron and 20 mm metal sheet, supported by an NPL 80 mm corner iron. Taper part stability is guaranteed by the conical part made of 140 mm steel C channel and ST-37, 8 mm metal plate used as support material.

The product is equipped with a 4" steel pipe extending up to the silo foot as a charging pipe and a maintenance platform. It offers ease of use thanks to the internal manhole and external manhole. The silo roof offers a complete structure, including arrests. The production process is carried out in accordance with the structure analysis and approved projects, which strengthens the quality and safety of the product.

Our CS-200 model is coated with 1 layer of anticorrosive paint and 2 layers of top coat epoxy paint, the total paint thickness is 140 microns and provides superior protection against external factors. This silo is an ideal solution for optimizing your workflow while reducing costs in the long run. With high-quality materials and an engineering marvel design, the CS-200 will become a reliable part of your business.

CS-200 - 200 Ton Cement Silo Technical Specifications

Silo Capacity 200 tons, 153 m3 (cement density of 1.3 tons/m3)

Silo Height 18360 mm

Silo Diameter Ø 4100 mm

The Amount of Silo Legs is 4

Silo Outlet Diameter Ø 300 mm

Number of Components 150

Silo Weight 14800 kg

Silo Foot Material 200 x 2 mm, rectangular iron

Silo Foot Supports NPL 80 mm corner iron

Silo Foot Plates 20 mm metal sheet

Taper Part Support Material 140 mm steel c channel

Conical Part Material ST - 37, 8 mm metal sheet

Silo Body Material ST - 37, 5 and 6 mm metal sheet

Silo Top Cover Material ST - 37, 4 mm metal sheet

Charging Pipe 4" steel pipe up to the silo leg

Internal Manhole is available

External Man Hole is available

The Silo Roof is included in the arrests

The Maintenance Platform is available

Structure Analysis is carried out for silos and the production process is carried out depending on the approved projects

Painting 1 layer of anticorrosive paint, 2 layers of top coat epoxy paint, total paint thickness 140 microns
