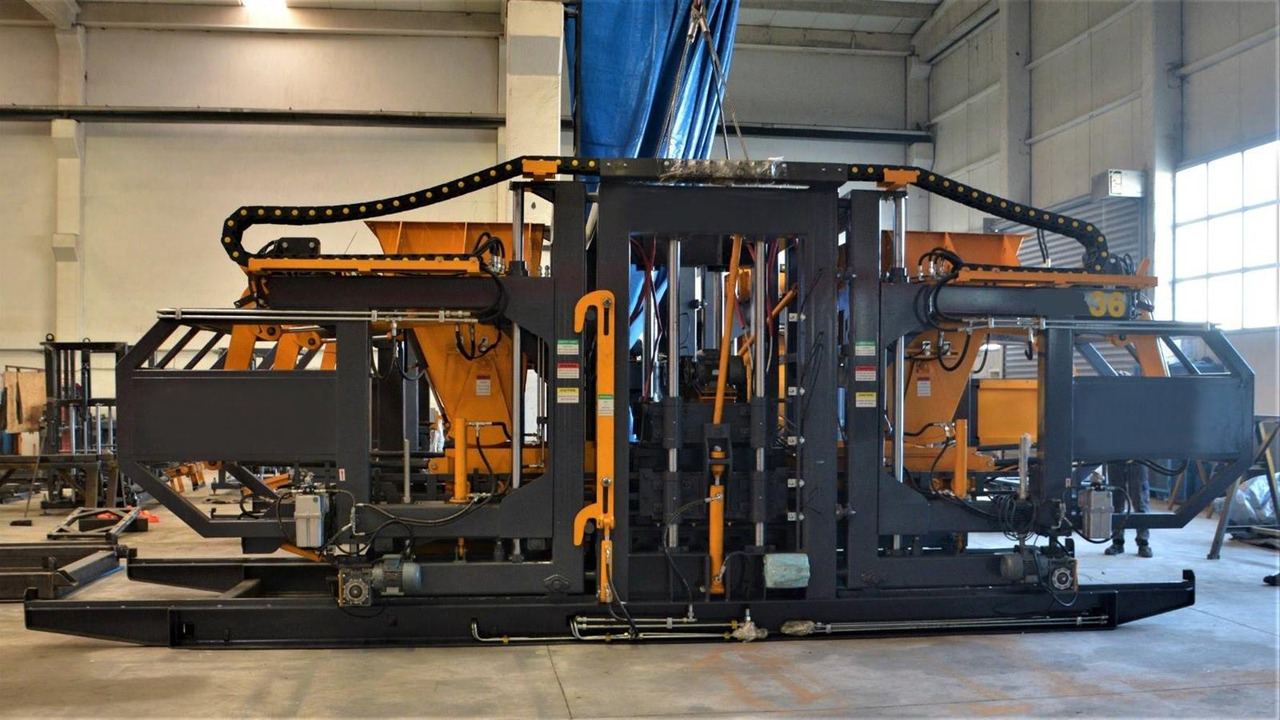

Block making machine Constmach BS-25 Concrete Block Making Machine (Concrete Paving Machine)

You can call us 24/7 for concrete block making machine for sale (concrete paving making machine).

The BS-25 concrete block making machine is designed for you to speed up your work and maximize your activity level. In every detail, there is technology that increases functionality and superior material quality. weighing 9000 kg and measuring 2.2x7x2.5 meters, this machine can produce 25 interlocks and complete the printing process in just 30 seconds. for the production of 10 blocks, this time is 23 seconds, this speed allows it to stand out from many competitors in the market.

The BS-25 model is designed to minimize the difficulties you may encounter in your daily workflow. For example, the Tellus 46 brand oil used in the hydraulic system ensures uninterrupted operation of the machine for a longer period of time, while the pump power and hydraulic cooler capacity offer effective performance even under any workload.

One of the most striking features of this machine is the control system equipped with the latest technology. Thanks to the Schneider brand PLC and touch screen, it offers an easy-to-use and effective control mechanism. This feature facilitates the daily use of the machine, while providing a more efficient working process in total.

BS-25 allows you to make block and interlock production using various molds. While the key molds prepared by oxygen cutting and CNC milling offer products in excellent dimensions, the mixer, which uses sheet metal protected against corrosion, promises a long service life and durable use. The mixer increases your work efficiency by mixing sand, cement and water quickly.

In short, the BS-25 concrete block making machine allows you to take your business to the next level with its high production capacity, strong performance and user-friendly features. By including this machine in your business processes, you can enjoy quality production while saving time and cost.

Technical Characteristics of BS-25 Briquette Making Machine

Machine Specifications

Interlock Quantity and Printing Time: 25 pcs locking, 30 seconds printing time

Block Parts and Printing Time: 10 blocks, 23 seconds printing time

Pump Power: 48 lt/min, Efficiency: 0.98

Hydraulic Cooler Capacity: 90 lt/min, 0.18 kW

Hydraulic System Brand and Oil Capacity: Tellus 46, 180 lt

Machine Working Hydraulic Pressure: 120 bar

Vibration Compression Strength: 13,000 kg

Machine Size and Weight: 2.2 x 7 x 2.5 m, 9000 kg

Lock Mold Specifications: Oxygen cutting and CNC Milling, 650 kg

Block Mold Specifications: Corrosion plate, laser cutting system, 750 kg

Stacking Robot

Pump Power: 21 lt/min x 2

Robot Size and Weight: 1.45 x 3 x 1.5 m, 1500 kg

Electrical Control

PLC, Module and Display: Schneider, 7 inch touch screen

Thermal and Conductor Brand: Schneider (France), Weid Moeller (Germany)

Mortar Band

Size: 8 m length, 70 cm width, 1000 kg

The Mixer

Mixer Capacity: 500 dm3

Product Weight and Mixing Time: 800 kg sand, 130 kg cement, 55 kg water, an average of 2.5 minutes

Corrosion Protection Sheet: 15 mm thickness, st52 steel

Mixer Motor Power and Torque: 15 kW, 40 rpm x 2 pcs, 4500 Nm

Sand Band

Size and Weight: 10 m length, 60 cm width, 1000 kg

Aggregate Hopper and Weight Band

Hopper Capacity and Weight: 10m3 x 3 pcs, 4500 kg

Valve Type and Power: Vibration system, 0.5 kW x 3

Band Size and Weight: 10 m length, 70 cm width, 1400 kg

Cement Silos And Equipment

Silo Capacity and Weight: 45 tons, 5500 kg

Silo Size: Diameter: 2250 mm, Height: 11500 mm

Cement Weight Capacity: 300 kg

Load Cell Brand and Capacity: ESIT, 500 kg

Safety Valve and Filter Features: 24 m2 open area filter (airjetplus)
