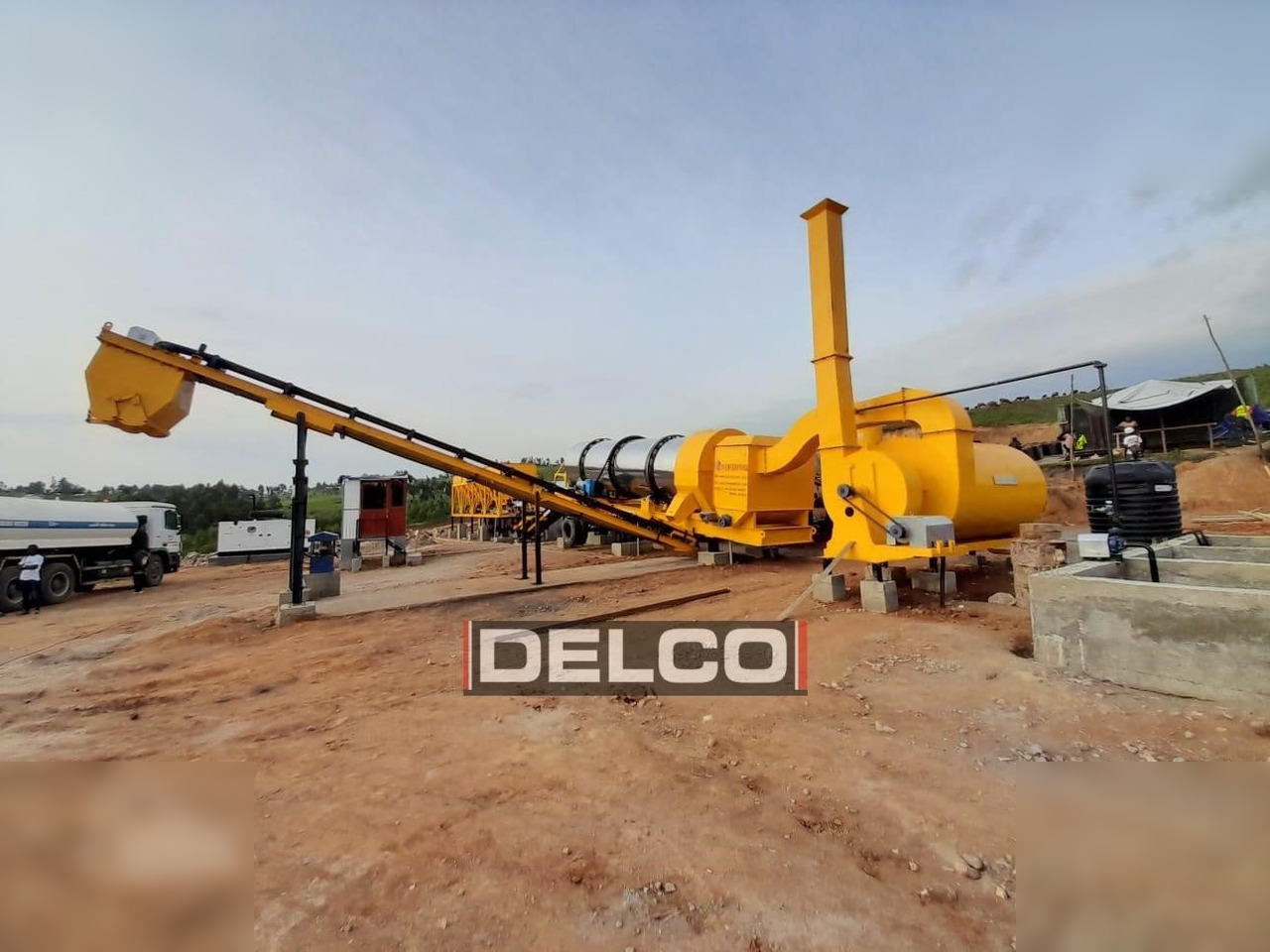

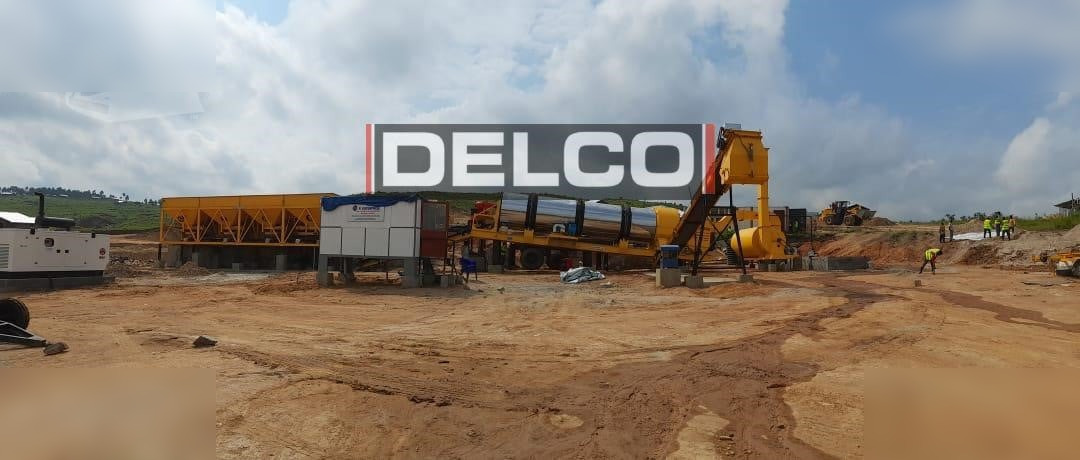

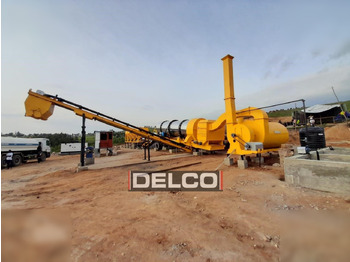

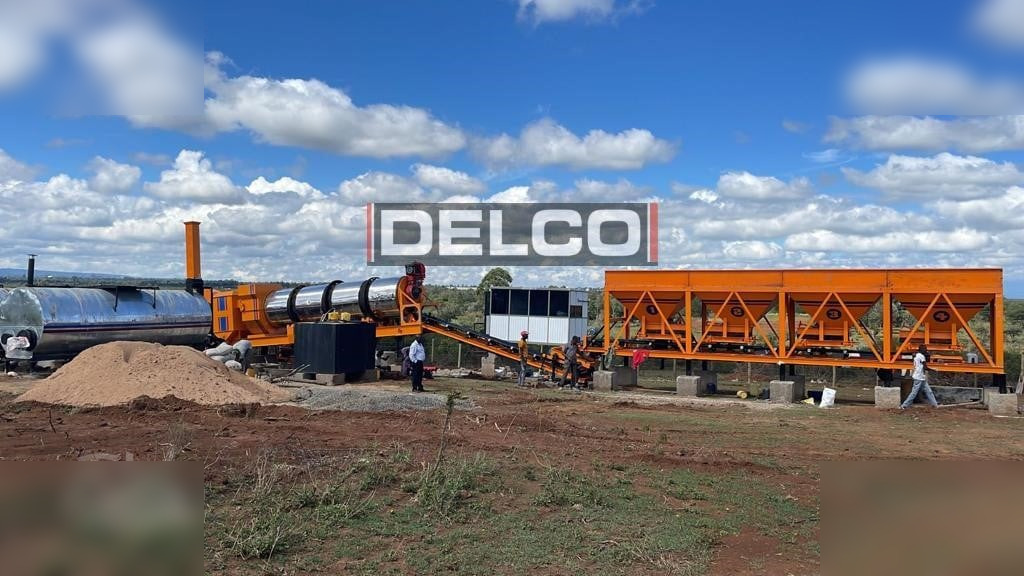

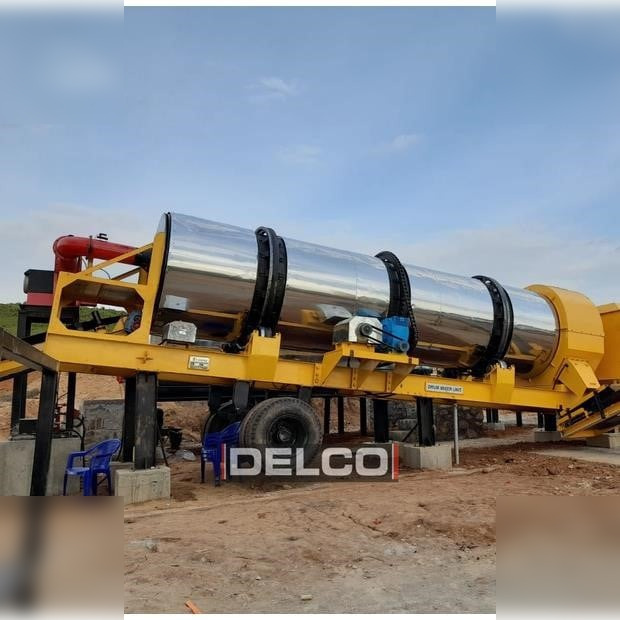

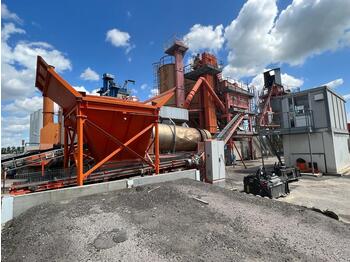

Asphalt plant DELCO 120 TPH

Hours Meter: Accurate / Verified

-

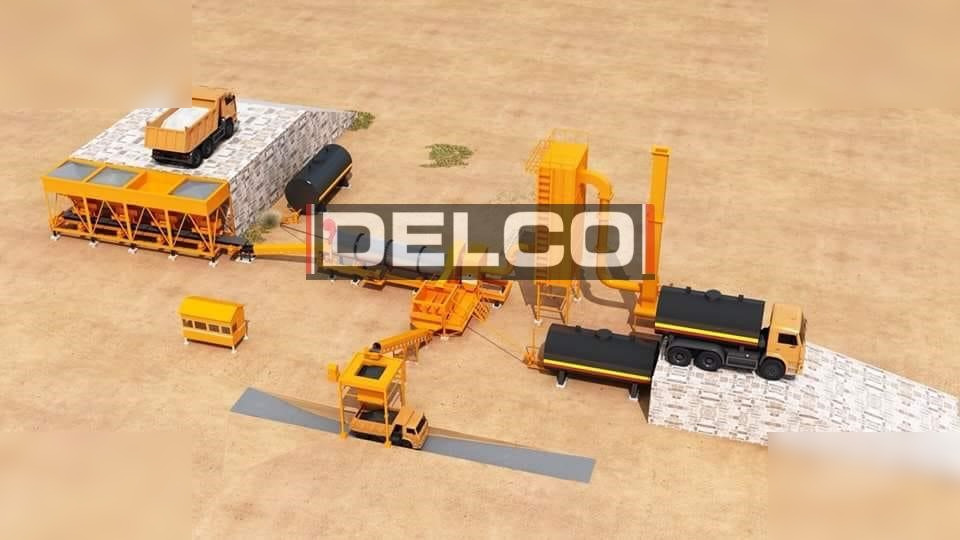

NEW DELCO 60-90TPH HOT DRUM MIX PLANT

SPECS

60 to 90 TPH 90 to 120 TPH

COLD AGGREGATE FEEDER BINS

No. of Bins

4

4

4

Total Storage Capacity

40 tons

50 tons

60 tons

Bin Charging Width

2700 mm

2700 mm

2900 mm

Bin Auxiliary Conv. Belt Drive Motor

2 HP / 1.5 Kw. – 4 nos.

2 HP / 1.5 Kw. – 4 nos.

3 HP / 2.25 Kw. – 4 nos.

Bin Auxiliary Conveyor Belt Size

450 mm width x 3 ply

450 mm width x 3 ply

500 mm width x 3 ply

Bin Auxiliary Conveyor Gear Box

20:1 – 4 Nos.

20:1 – 4 Nos.

20:1 – 4 Nos.

Gathering Conveyor Belt Size

600 mm x 3 Ply

600 mm x 3 Ply

800 mm x 3 Ply

Gathering Conveyor Drive Motor

5.0 HP / 3.75 Kw

7.5 HP / 5.62 Kw

7.5 HP / 5.62 Kw

Gathering Conveyor Gear Box

20 : 1

20 : 1

20 : 1

Bin Vibrator Motor

1.0 HP / .75 Kw

1.0 HP / .75 Kw

1.5 HP / 1.12 Kw

SINGLE DECK VIBRATORY SCREEN

Drive Motor 2.0 HP / 1.5 Kw 2.0 HP / 1.5 Kw 3.0 HP / 2.25 Kw

Wire Mesh 45 mm x 45 mm

SLINGER (COLD) CONVEYOR

Conveyor Drive Motor 5.0 HP / 3.75 Kw 5.0 HP / 3.75 Kw 7.5 HP / 5.62 Kw

Conveyor Gear Box 5:1 5:1 5:1

Conveyor Belt Size 500 mm x 3 Ply 600 mm x 3 Ply 600 mm x 3 Ply
